LIST Parameters for control of BINGO listing
Fig. 6.3-2 Parameters for control of BINGO listing.
Columns | format | contents/explanation |
|---|---|---|
1-4 | A4 | LIST |

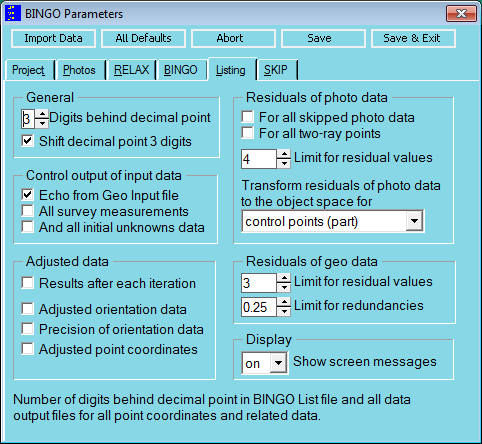

6-10 | I5 | FLOT: Position of the decimal point and number of digits behind the decimal point. The following values are permitted: 1, 2, 3, 4 as well as -3 and -4. The amount defines the number of digits behind the decimal point. The minus sign effects a shift of the decimal point position of three digits for all standard deviations and residuals. Default: FLOT = -3 In the GUI two separate values are to be set here. |
11-15 | I5 | LGEO: Parameter for control of check print of read-in from GEO INPUT file data and computed approximate values. 0 :no listing;1 :listing of read-in measured quantities (without image coordinates);2 :in addition, listing of all approximate values for the adjustment unknowns. If LGEO has a negative value (i. e. -0, -1 or -2) the echo from the GEO INPUT File will be suppressed. Default: LGEO = 0 In the GUI three separate values are to be set here. |
16-20 | I5 | CITE: Switch for listing the results after every iteration, including the corrections to the unknowns. 0 :Off1 :On Default: CITE = 0 |
21-25 | I5 | LORI: Parameter for listing the adjusted photo orientations 0 :Off1 :Listing of the adjusted orientations2 :Listing of the standard deviations of the orientation data3 :Listing of the orientations including standard deviations Default: LORI = 0 In the GUI three separate values are to be set here. |
26-30 | I5 | LCOR: Switch for listing the adjusted point 0 :Off1 :On Default: LCOR = 0 |
31-40 |
| % |
41-45 | I5 | SKIM: Switch for listing the residuals of all skipped photo measurements 0 :Off1 :On Default: SKIM = 0 |
46-50 | F5.0 | FIMA: Factor for computation of a list limit for residuals of image coordinates. >0.0 :FIMA defines a list limit = FIMA ⋅sx';-1 :all residuals will be listed. Default: FIMA = 4.0 |
51-55 | F5.0 | FGEO: Factor for computation of list limit for residuals of survey observations and for all further observations which are not image measurements. >0.0 :FGEO defines a list limit = FGEO ⋅s;-1 :all residuals will be listed. Default: FGEO = 1.0 |
56-60 | I5 | 2RAY: Residuals and redundancy numbers for all points with only two image measurements will be output. Default: 2RAY = 0 |
61-65 | F5.0 | RGEO: All discrepancies and redundancy numbers of all geodetic measurements, GPS-data etc. with a redundancy share smaller than RGEO are listed. RGEO=0 sets this function out of order. Default: RGEO = 0.25 |
66-70 | I5 | SHOW: Switch for displaying error and warning messages and also the progress in the program process in the BINGO manager 1 :Off2 :Short listing for important steps3 :Full listing of program activities4 :Reserved for internal purposes Default: SHOW = 2 |
If there is no LIST statement, the default values of the program are valid. If several LIST statements are entered, only the last becomes effective.
Parameter LGEO controls listing of input data and of computed or read-in approximate values of unknowns. Parameters LORI, LCOR and SORT control output of the adjusted unknowns. FIMA, FGEO, RIMA and RGEO control output of residuals and redundancies of the adjusted unknowns. Here output will be effected as soon as one of the listing criteria is satisfied. Parameters RIMA and RGEO will only be applied when the option for data-snooping is given in the PARA statement.
